FCAR F507 Heavy Duty Truck Scanner Diesel OBD/OBDII Code Reader with OEM Level ABS Transmission Full System Diagnostic Scan Tool For Truck & Car (New Version)

FCAR F507 Heavy Duty Truck Scanner Diesel OBD/OBDII Code Reader with OEM Level ABS Transmission Full System Diagnostic Scan Tool For Truck & Car (New Version)

Product Description

OEM Level diagnostic ABS+OEM Level diagnostic Transmission+Truck Full System + Diesel OBD Functions + OBD II = F507 Tuck Scanner

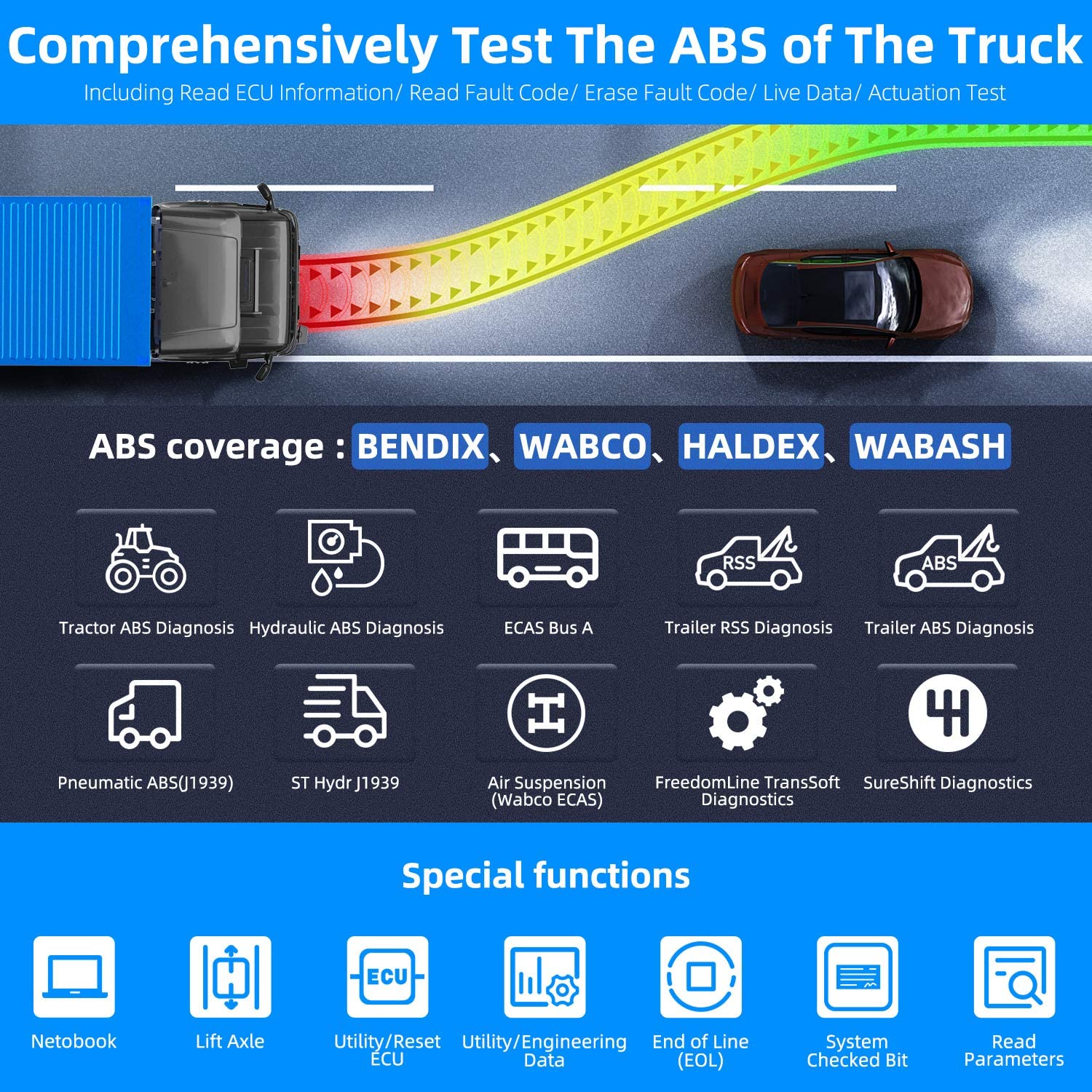

The ABS function is developed by the original factory agreement (truck original equipment), through system diagnosis (diagnosis by system)，Support BENDIX/ WABCO/ Haldex/ Wabash ABS models.

Basic functions: Read ECU Information, Read Fault Code, Erase Fault Code, Read Data Stream.

Special functions: Netobook, Lift Axle, Utility/ reset ECU, Utility/ engineering data, End of Line(EOL)/ system checked bit, Rest ABS Controller, Dyno Mode, Calibrate ESP Sensors, Reset ABS Controller, Calibrate ESP Sensors, Tire Size, Controller Configuration, SPTAC Calibration, Installation Update Information.

Actuation Test: Trailer ABS Warning Lamp, Extended Diagnostics, Odometer Value, ScratchPad, Redundancy test, Warning lamp.

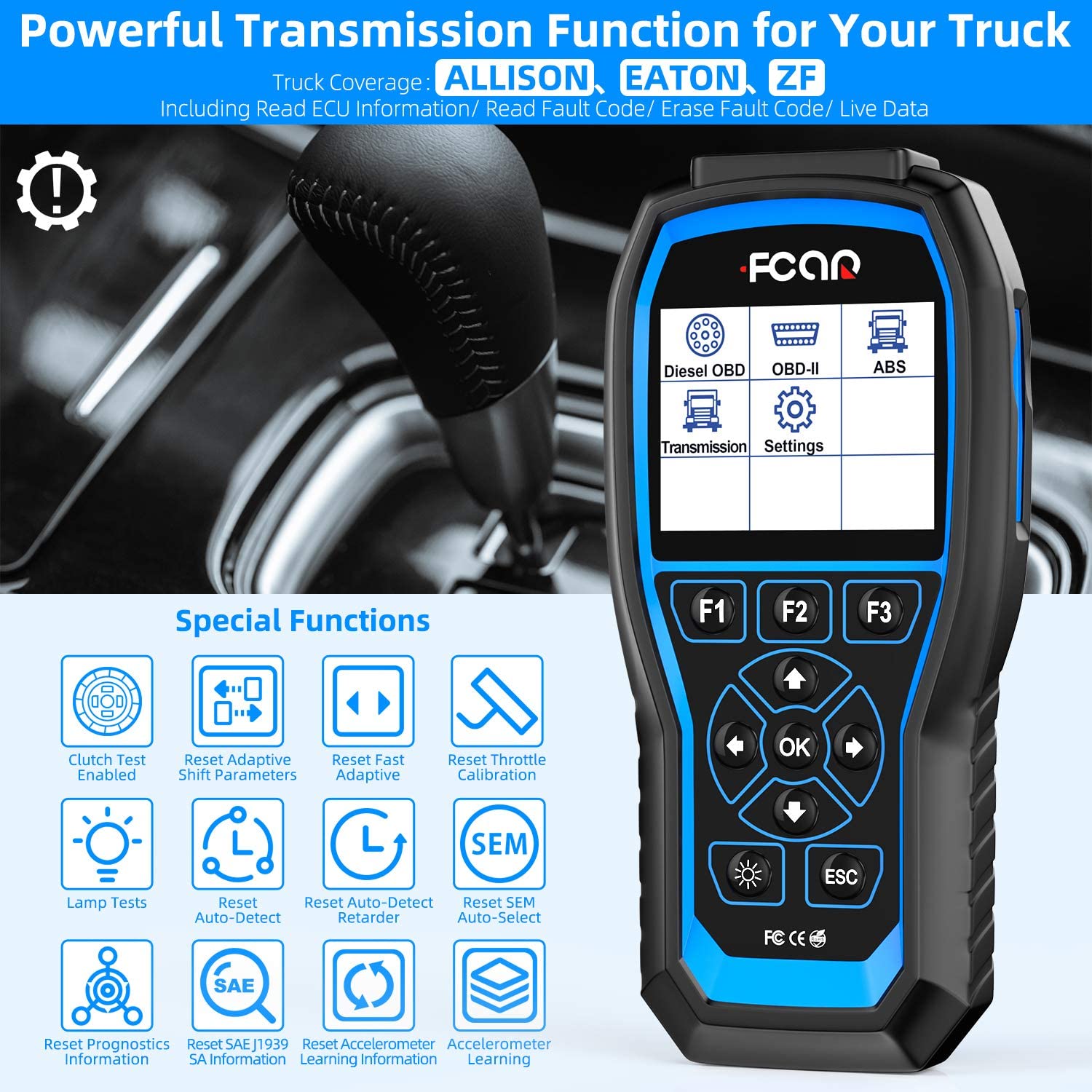

The Transmission Function is mainly to read the truck error code to let the you know the problems of the truck. It can detect all the functions of the truck’s ABS to ensure the your driving safety. F507 mainly supports Allison/Eaton/ZF transmission models.

Basic functions:Read ECU Information, Read/ Erase Code, Read Data Stream.

Actuation Test: Clutch Test Enabled, Reset Adaptive Shift Parameters, Reset Fast Adaptive, Reset Throttle Calibration, Lamp Tests, Reset Auto-Detect,Reset Auto-Detect Retarder, Reset SEM Auto-Select, Reset Prognostics Information,Reset SAE J1939 SA Information, Reset Accelerometer Learning Information, Accelerometer Learning.

F507support Class 4-Class 8 truck coverage featuring “Automatic Protocol Search”.HD J1708 and J1939 CAN, Engine, Transmission/ABS coverage, etc.

General Functions (Including Global OBD II coverage):

Read ECU Information, Read and Erase Fault codes, Read Live Data, Read Freeze Frame, Graph Live Data.

Differentiation

Basic code reading and clearing of mainstream American heavy-duty trucks, as well as component actuation and special functions for Wabco, Bendix, Haldex, Wabash ABS, and Allison, Eaton, ZF transmission systems.

Graph live data such as:

Engine speed, Engine ECU temperature, Percent acceleration pedal position, Engine intercooler temperature, Engine coolant temperature, Battery voltage, Alternator voltage, Ambient air temperature, Air inlet temperature, Set measurement units in SAE English / MetricInternet upgrade.

Applications

Passenger cars, SUV’s pickup trucks, mini truck.

Tow trucks, recreational vehicles, cement trucks, dump trucks, garbage trucks, buses, step truck, municipal vehicles, refrigerated trucks, and conventional trucks.

Heavy-Duty Standard compliant construction, marine, agriculture, and other industrial machinery and equipment.

Diagnosis of any trucks, tractors and trailers equipped with Wabco/ Bendix/ Haldex/ Wabash ABS and Allison/ Eaton/ ZF transmission systems.SAE J1850PWM, SAE J1850 VPW, IS0 14230-4, IS0 9141-2, IS0 15765-4, SAE J1708, SAE J1939, OBDII

VEHICLE CONNECTION

Connect the scanner to your vehicle: F507 communicates with the computer in your vehicle through a main-line connection. One end of the cable is plugged into the connector on DB15 of F507 and the other end to the adaptor, which is plugged in to the diagnostic connector on your vehicle.(CAUTION: The operating voltage of F507 is within 11V-28V, please make sure the output voltage of the diagnostic socket on your vehicle is 11V – 28V.Turn the vehicle ignition key to ON or start the engine, and then the F507 will automatically start)

1
All in one, meet your various needs!

Consider to buy one F507 scanner for your truck or mini truck?

Have idea of purchasing a maintenance/ service reset tool after having a diagnostic device?

Tired of paying and installing individual software one by one ?

Want to get a device with all softwares ready and use directly by just connecting to truck?

Then you need a comphrensive FCAR F507 Scanner!!!

Get one FCAR F507 Truck Scanner, to own three different devices. ( Full system truck scanner + OBDII Code Reader+ OEM Level Diagnostic ABS+Transmission).Then you don’t need to take time to choose device for different demands.

What’s more, the unique features such as lifetime update, Live Data in Graph & Text, Data screenshoot is the highly added values for the FCAR car scanner, which makes your repair work easier and more efficient.

The excellent automotive scanner offers a better option for those who pursue a comprehensive diagnostic device. Obtaining one FCAR F507 will satisfy all your requirements.Undoubtedly, it will bring a great user experience for technicians, mechanics, workshops and repair garage.

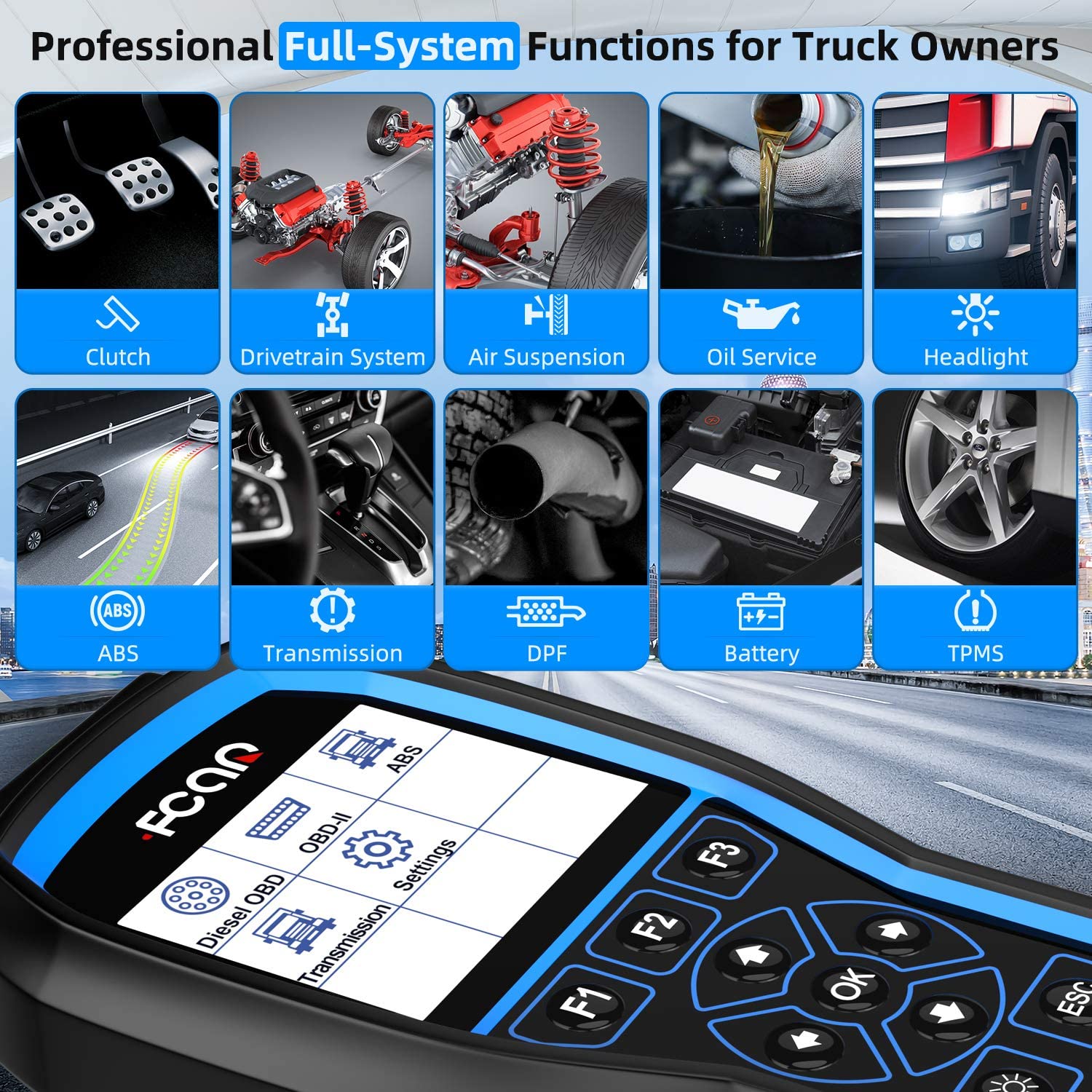

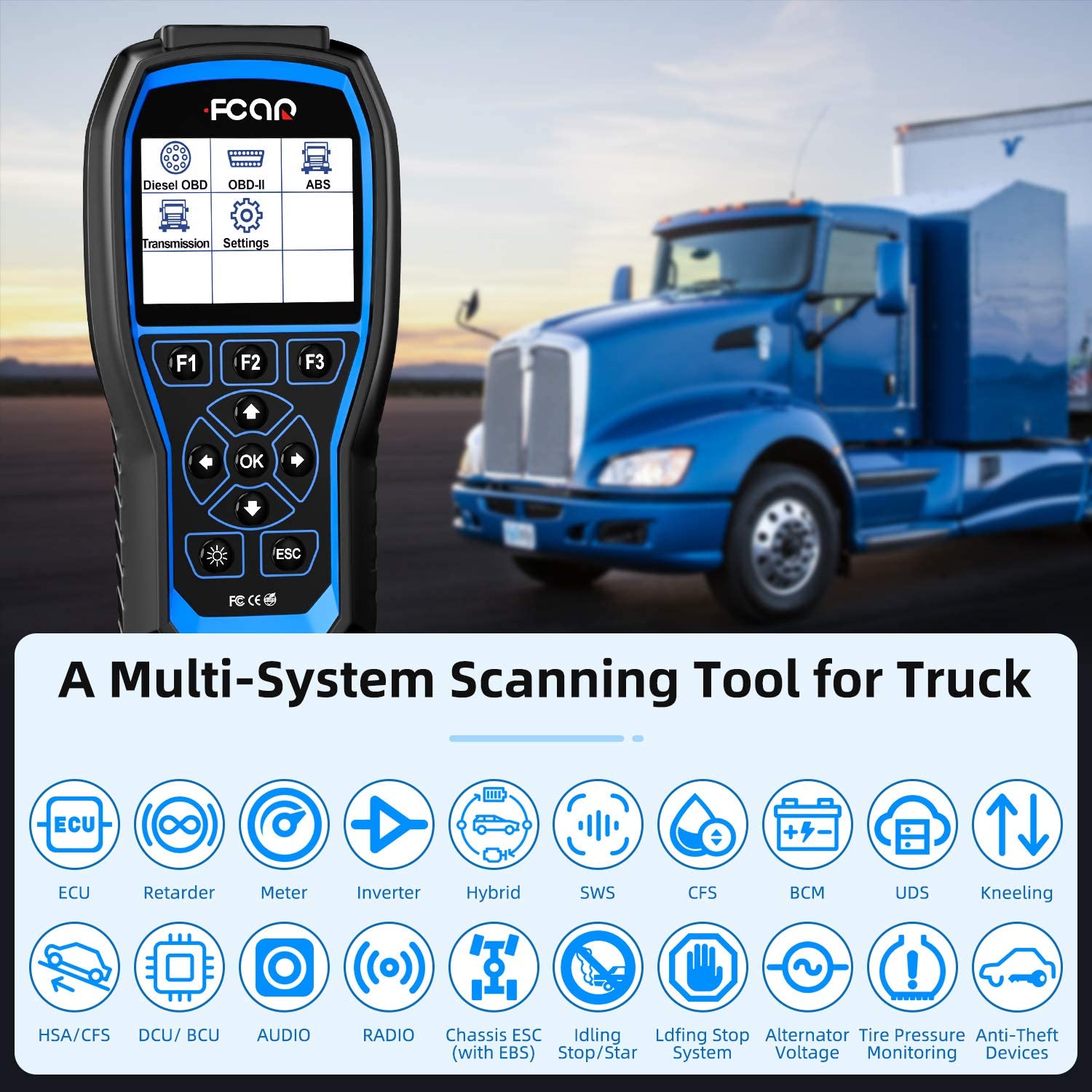

Full system truck features

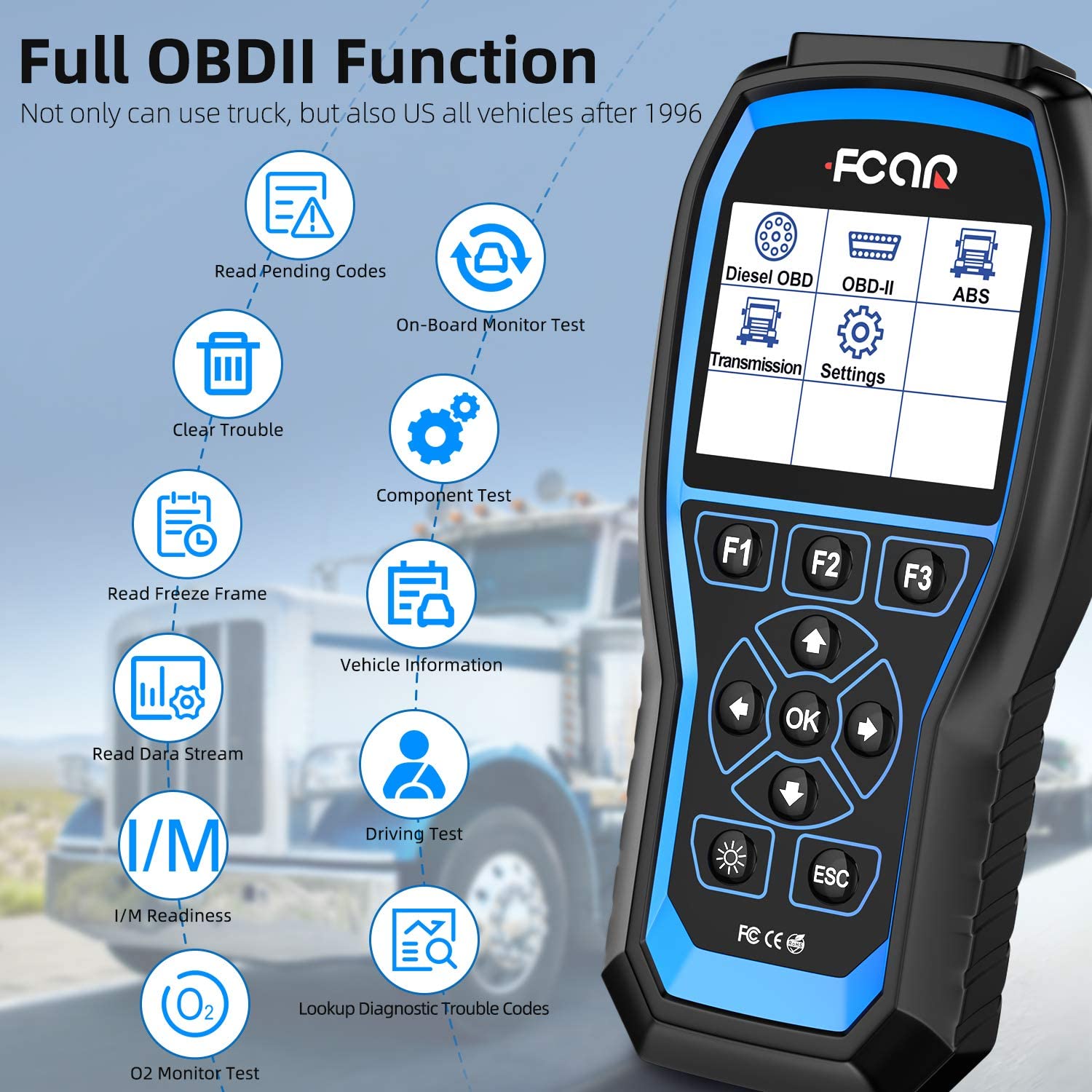

F507 Support 10 OBDII Test Modes
The F507 code reader is an enhanced scan tool specially designed for most 1996 and newer OBDII-compliant vehicles. Compared to basic OBD2 scanner/code readers, it provides complete OBDII diagnostics, including:

Read and Clear fault codes: Show the detailed description of the Diagnostic Trouble Code (DTC) and clear/reset the diagnostic information.

Turn-off Malfunction Indicator Light .

Read I/M Readiness Status: Show whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream: Show the information of continuous data stream from vehicle in live graphic (waveform) display.

Read Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test: Show the last results of O2 sensor test in graphic display for troubleshooting.

On-Board Monitor Test: Read the results of on-board diagnostic monitoring tests for specific components/systems.

Read Vehicle Information: Display the information such as VIN (Vehicle identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

EVAP Test for Fuel Tank System (Carbon canister test).
ABS (Brake Auto Bleed) / SRS (Adjustment steering-angle sensor)
The SRS crash data diagnose and reset. Read the SRS(Airbag) system error code accurately and erase the error code, turns off the airbag warning light. To prevent the dreadful danger caused by the airbag not working properly after a collision.

The SRS diagnostic function is used to retrieve and clear error code, display and save data streams or module information.What is more, the Auto Bleed function will help get air that is trapped in the ABS actuator module out when bleeding your brake lines to ensure that repairs to this vital system are effective and complete.

Unparalleled Appearance
F507 truck scanner uses a high-molecular material shell to prevent you damage it during using. Reflective materials allow you to use the product more well no matter whether it is day or night. The dimmable smart button allows you adjust the screen brightness at will and enhance your visual comfort.The Humanized appearance design makes F507 a good choice whatever DIY user or a professional truck repairer.

Lifetime Free Update
F507 supports lifetime free update, no include any hidden costs,you can easily click our offical web to download Installation package. Our technical will continuously upgrade our existing functions based on customer feedback,to improve product compatibility and stability, and enable our customers to have real-time/Accurate data.
